Details

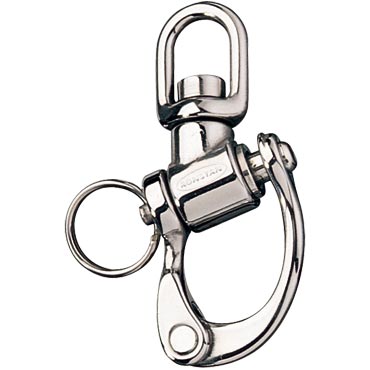

One Quality Ronstan RF6110 Trunnion Snap Shackle With Small Bale 70mm

Ideal for spninnaker sheets etc, where quick attachment time is vital.

Trunnion swivel head allows both 360 degrees rotation and side to side articulation

Materials
•Grade 15-5PH investment cast stainless steel body and hasp
•Grade 316 stainless steel plunger pin and spring



Snap end inner Diameter 16.0 mm


Attachment End Inner Diameter 10.0 mm


Length 70.0 mm

M.W.L.
750 kg

B. L.
1500 kg

Weight
57 g
